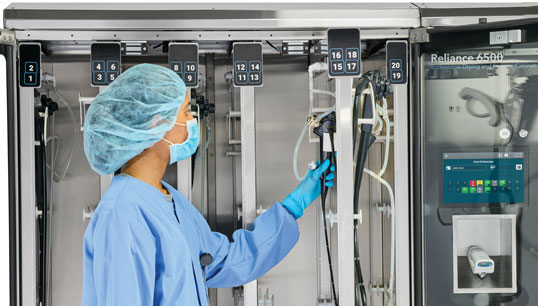

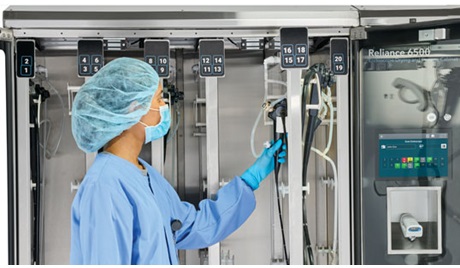

Technician with Endoscope Drying Cabinet

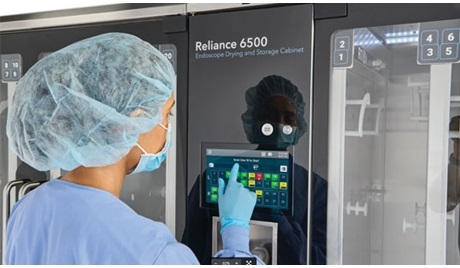

Technician using Endoscopy Cabinet

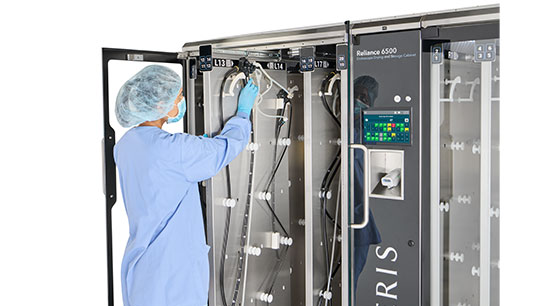

Technician Hanging Endoscope in Drying Cabinet

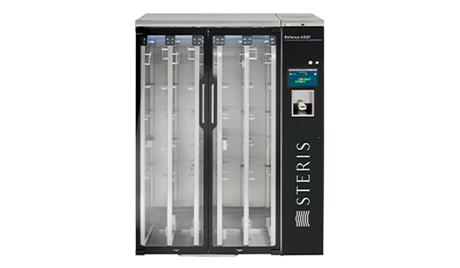

Reliance 6500 Endoscope Drying and Storage Cabinet
Technician with Endoscope Drying Cabinet
Technician using Endoscopy Cabinet

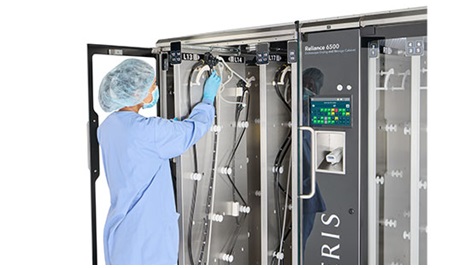

Technician Hanging Endoscope in Drying Cabinet

RELIANCE™ 6500 Endoscope Drying and Storage Cabinet

  • Continuous HEPA-filtered airflow facilitates the drying of internal lumens and external surfaces of endoscopes
  • Main unit holds 12 or 20 endoscopes, while expansion modules enable storage of up to 40 endoscopes
  • Vertical storage designed to keep endoscopes separated and within reach on retractable panels
REQUEST A QUOTE

Product Overview

The RELIANCE 6500 Endoscope Drying and Storage Cabinet is designed to help you manage access to your endoscope inventory, track key parameters, and easily access vertically hanging endoscopes, all in an organized and controlled drying environment.

This vertical endoscope storage cabinet aids in drying and meets or exceeds recommendations and guidelines from ANSI/AAMI ST91:2021, providing the assurance you need to protect and manage your endoscope inventory successfully.

ANSI/AAMI ST91:2021 standards:

"Drying of gastrointestinal endoscopes after washing and high-level disinfection is an essential component in processing. Forcing HEPA-filtered or instrument air through endoscope channels facilitates drying, can evacuate and/or accelerate the evaporation of residual alcohol (if used), and reduces the likelihood of progressive endoscope contamination by waterborne pathogens." 1

How the RELIANCE 6500 Endoscope Drying & Storage Cabinet Works

Effective endoscope drying and storage play a critical role in supporting infection control guidelines. The RELIANCE 6500 Endoscope Drying and Storage Cabinet is designed to protect and manage flexible endoscopes and transoesophageal probes in a clean environment that promotes drying.

HEPA air filtration removes 99.97% of particulates, while 26 internal air exchanges per hour facilitate the drying of internal lumens with channel-purging airflow and external surfaces through directed airflow.

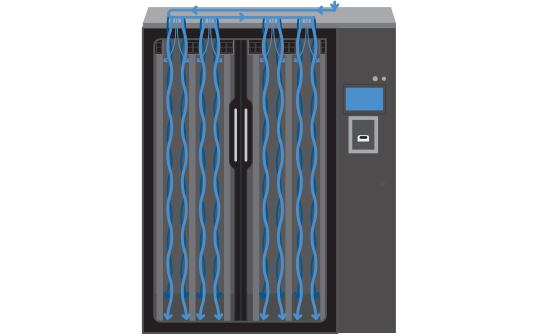

HEPA air filtration in endoscope drying cabinet

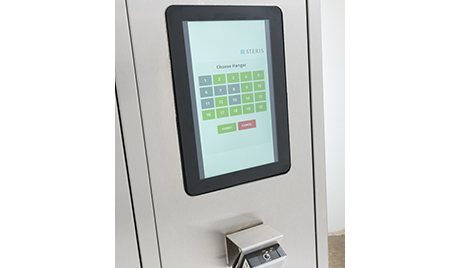

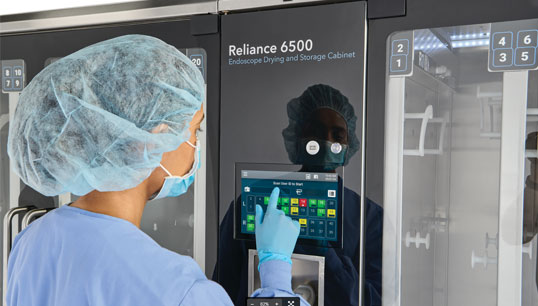

Endoscope Cabinet Touchscreen Monitor

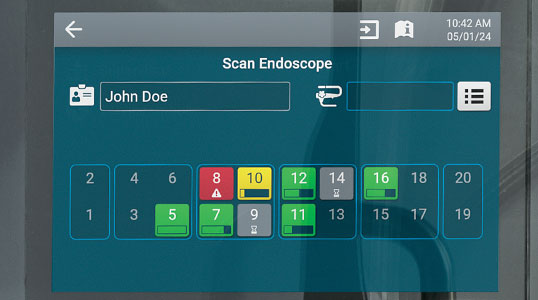

Continuous Status Monitoring

The large touch screen allows interaction with gloved hands and displays important information like hang time status. Visual identification of scopes using systematic numbering and customizable views provides the most relevant information based on your needs.

Records key parameters, including endoscope model, technician, and storage time for traceability and documentation using barcode scanning.

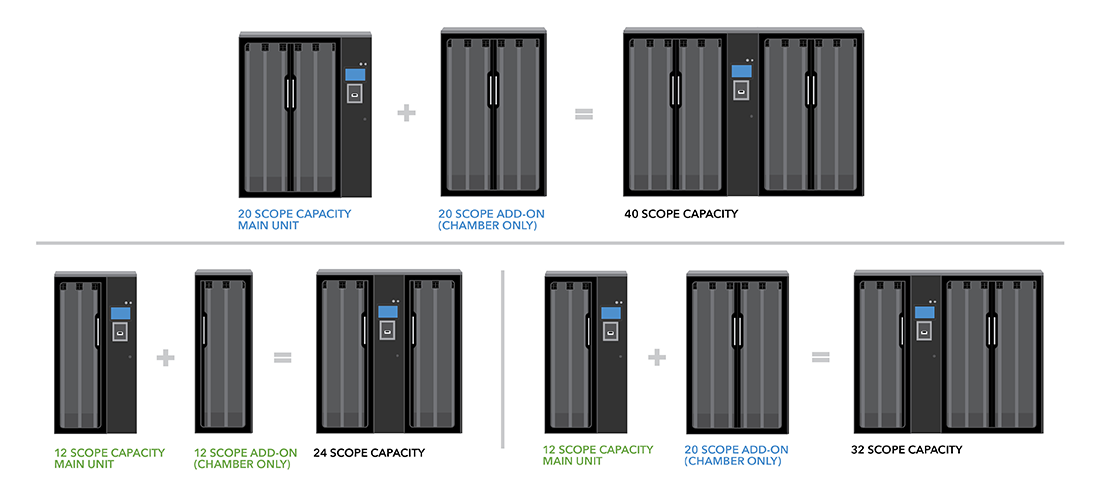

Available in a Range of Sizes, Features, and Configurations To Fit Your Needs

The modular, vertical storage design meets the needs of small to high-volume endoscopy facilities. It accommodates 12 or 20 endoscopes, with expansion models enabling storage of up to 40 endoscopes.

Endoscope Drying Cabinet Size and Capacity Ranges

In addition to colonoscopes, specialty endoscope hangers facilitate placing and removing various endoscope types while minimizing contact between stored devices. The TEE/TOE Probe Holder and EUS (Ultrasound) Endoscope Holder allow for the placement of these devices, while the bronchoscope holder is specifically designed to accommodate a bronchoscope's control body.

Why Choose the RELIANCE 6500 Endoscope Drying & Storage Cabinet?

  • Expansion modules: These offer Customers the flexibility to expand endoscope storage capacity in the future as their inventory grows. The cabinet and expansion module are both managed by the same control system.
  • HEPA-filtered cabinet and purge air: Promotes drying of external surfaces and internal channels of endoscopes
  • Large touchscreen interface: Provides visual access to all cabinet controls and functions
  • Visibility: Tempered glass doors and internal LED lighting
  • Storage time alert: Notifies users when an endoscope is nearing its storage expiration date
  • Endoscope distal end protector: This protector safeguards the distal end of endoscopes and TEE/TOE probes, ensuring they do not touch the base of the cabinet

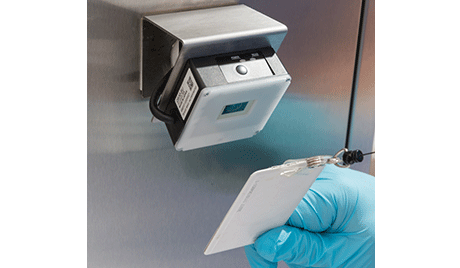

  • Versatile barcode scanner: When stored in the cabinet, it switches between a stationary hands-free mode and a cordless handheld mode for convenient endoscope scanning
  • Endoscope tube sets: Connects to HEPA-filtered air to aid in the drying of endoscope lumens
  • Drip tray access: Technicians can clean from outside the cabinet using a pullout drawer

Connected Workflow

Seamlessly connect your endoscope storage cabinet to your healthcare facilities' tracking software with ConnectAssure Technology.

Transform from reactive to proactive with SPM Endo Workflow Solutions Software. Take control of your endoscope reprocessing approach with guided workflows that help ensure you are procedure-ready, plan inventory, and track endoscope hang time. Plus, robust data collection for reporting.

1 ANSI/AAMI ST91:2021 Flexible and semi-rigid endoscope processing in health care facilities, Annex K.

REQUEST A QUOTE
Go to Top of Page


Accessories Compatibility Matrix

Confirm that your endoscopes can be used with the RELIANCE 6500 Endoscope Drying and Storage Cabinet, and find what connector is needed for each scope.

SEARCH FOR MY SCOPES

Go to Top of Page


Shop Now

RELIANCE 6500 DRYING CABINET ACCESSORIES

Product Number Description

REL6500ENDOHGR

Endoscope Hanger

REL6500ENDOSUPPORT

Endoscope Support

REL6500TEESUPPORT

TEE Probe Support

REL6500TEEHOLDER

TEE Probe Holder

REL6500EUSENDOLRG

EUS Endoscope Holder, Large

REL6500EUSENDOSML

EUS Endoscope Holder, Small

REL6500BRONCHHLDR

Bronchoscope Holder

REL6500DEPROTECT

Endoscope Distal End Protector
