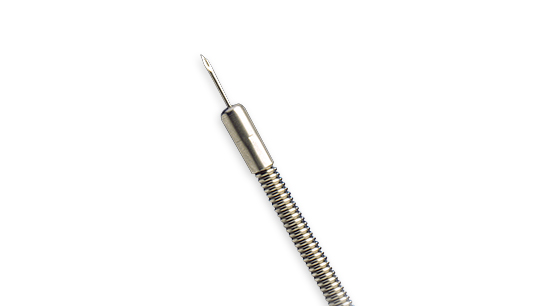

Articulator™ Injection Needle

  • Key Benefit: Kink-resistant, stainless steel sheath is ideal for everyday use with dependable performance in articulated endoscopes
  • Product Specifications: All devices feature a 2.5mm sheath diameter with a 25-gauge needle and are available in 4- or 5mm needle projection and varying lengths (160, 230, and 350 cm)
  • Product Features: Luer-lock, spring-loaded handle automatically retracts the needle, helping to reduce the risk of inadvertent needle sticks and scope damage

Shop Now

Product Overview

The Articulator injection needle is a reliable, yet affordable sclerotherapy needle ideal for everyday use and dependable enough for the most immediate needs. From saline assisted polypectomy to esophageal varices, ulcers and tattooing, the Articulator injection therapy needle is the steadfast choice.

How the Articulator Injection Needle Works and Affects Patient Flow and Outcomes

The Articulator injection needle for gastrointestinal endoscopy is intended to be used for the injection of various types of media through flexible endoscopes. Example applications for these stainless-steel injection needles may be submucosal lifting prior to endoscopic mucosal resection (EMR), injection therapy for GI bleeds, sclerotherapy for the treatment of varices, or endoscopic tattooing for the marking of lesions.

GI Departments may face costly endoscope repairs after an extended sclerotherapy needle has been inadvertently pulled through the accessory channel of the endoscope. The Articulator needle is a luer lock injection needle featuring a spring-loaded handle that automatically retracts the needle, potentially reducing the risk of inadvertent scope damage caused by an extended needle.

The Articulator injection needle has a stainless-steel spring sheath, which helps make it a kink resistant injection needle. Because of these kink resistant properties, the Articulator injection needle fully deploys where there is significant looping and tortuous conditions (e.g. the colon).

Why the Articulator Injection Needle?

The stainless steel injection needle features the following:

  • Luer-lock, spring-loaded handle that helps promote maximum needle projection, while protecting against scope damage and inadvertent needle sticks
  • Kink resistant, stainless steel sheath to pass smoothly and perform in articulated endoscopes
  • Stainless steel hub to help ensure the needle does not penetrate through the side of the catheter during deployment
Go to Top of Page


Shop Now

Browse a complete Item Number list and easily reorder Articulator Injection Needle products on Shop STERIS.

Product Number Sheath Diameter Length Needle Projection Needle Gauge Unit/Box
  • This product has been manufactured not to include latex.
BX00711803 2.5mm 160cm 4mm 25 5
BX00711804 2.5mm 160cm 5mm 25 5
BX00711807 2.5mm 230cm 5mm 25 5
BX00711808 2.5mm 350cm 5mm 25 5
BX00711810 2.5mm 230cm 5mm 25 10
