Clamps and Sockets

STERIS offers a variety of durable accessory clamps to attach and position surgical table accessories to surgical tables with standard siderails as well as orthopedic spars and imaging extensions without siderails. These accessory clamps are designed to accept round posts, flat, rectangle bar posts and square posts.

REQUEST A QUOTE OR INFORMATION

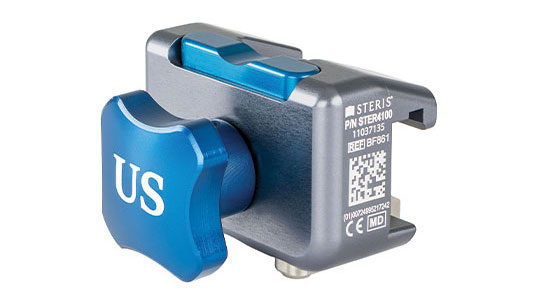

Secure-Release™ Clamp

Attaches anywhere along the siderail
Secure-Release™ button prevents false rail engagement & simplifies removal
Fully autoclavable
Accepts flat blade accessories
Engraved labeling - no sticky adhesives

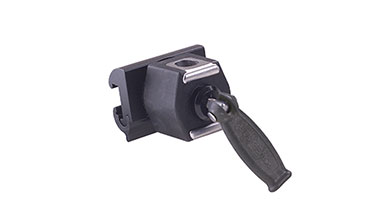

Clip-On Socket Clamp

Attaches anywhere on surgical table rail
No need to find table notches
Accepts accessories with round post up to 11/16" diameter
Patient weight capacity is 800 lbs. (363 kg)

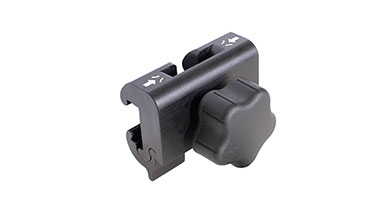

Clip-On Blade Clamp

Attaches anywhere on surgical table rail
No need to find table notches
Accepts all 1" x 1/4" flat blade accessories

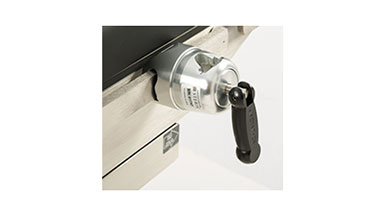

Schure™ Socket XL

Dual receptacle accepts both round and flat posts for enhanced functionality and versatility
Easy snap on action anywhere along the siderail
Allows for 360° rotational positioning of table accessories
Constructed of durable stainless steel body and impact resistant copolymer handle
Low profile eliminates obstruction with adjacent equipment
Sold as a single, each unit

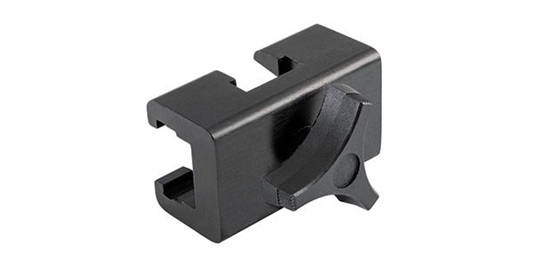

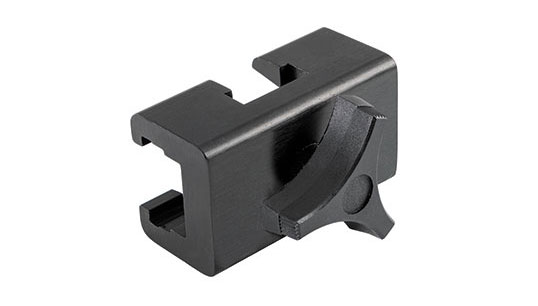

Rail Clamps

Accepts table accessories with flat, rectangular, bar posts
Allows for horizontal positioning of table accessories
Compatible for use with stirrups
Sold as a single, each unit

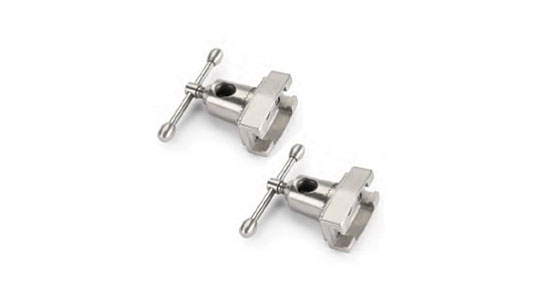

Clark Sockets (Pair)

Multiple functions for securing and articulating with one lever
Single lever for simple, quick attachment and removal
Constructed of durable stainless steel
Sold as a pair

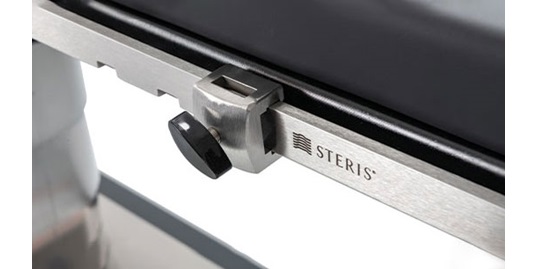

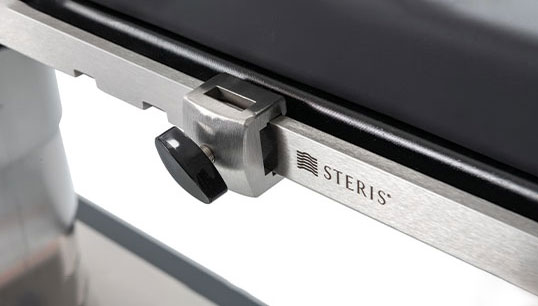

Siderail Locks (Pair)

Accepts table accessories with flat, rectangular, bar posts
Allows for horizontal and vertical positioning of table accessories
Constructed of durable cast metal clamp and impact resistant plastic knob
Sold as a pair

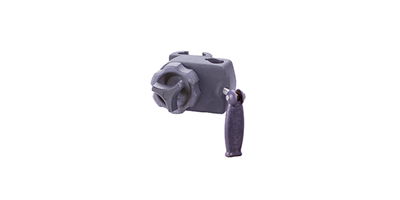

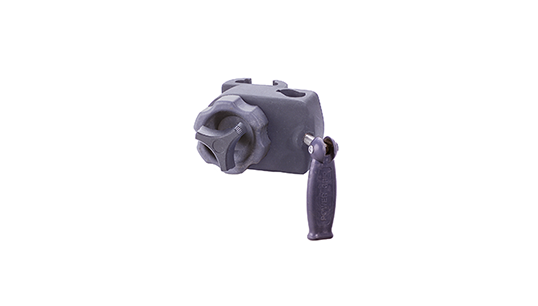

3-Way Adjustment Clamp

Adjustable clamp attaches anywhere on the operating table rail
Three independent adjustments for lithotomy, abduction and rail securement
Accepts all 1/2" to 5/8" round and 1" x 1/4" flat blade accessories
Patient weight capacity is 350 lbs. (159 kg)

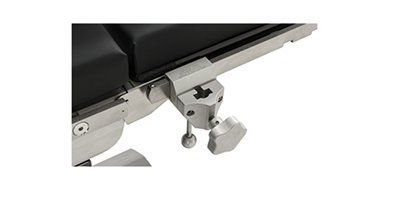

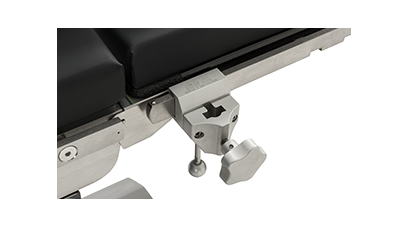

Camlock Rail Clamp

Multi-purpose clamp accepting round and flat bar posts of table accessories
Quick release lever for attachment and easy grip knob for height adjustment
Sterilizable clamp for use with TKR Positioner for total knee replacement surgery
Universally compatible to standard siderails including sterile draped rails
Sold as a single, each unit

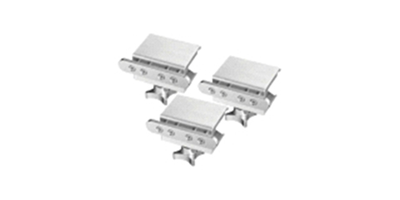

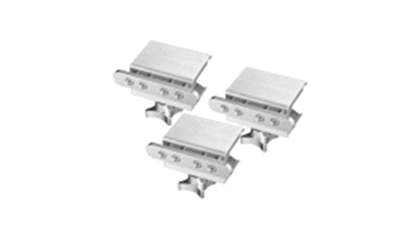

Standard Siderail Adaptor

Converts metal-free, carbon fiber tabletops and extensions to accept accessory attachment
Provides a 6" standard siderail for mounting accessories

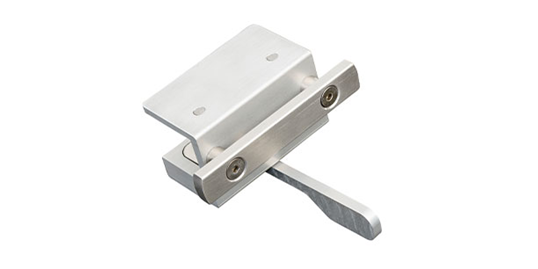

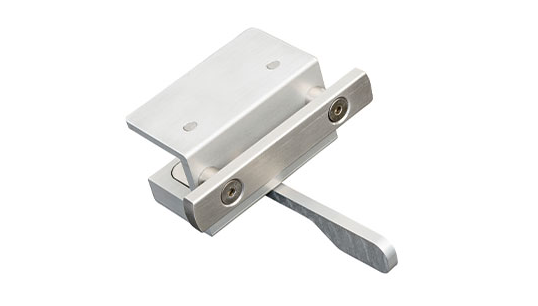

Siderail Adaptor – CMAX X-Ray

Converts metal-free, carbon fiber tabletop to accept accessory attachment
Removable and repositionable along the length of the CMAX X-Ray Image-Guided Surgical Table
Creates an on-demand North American-standard side rail
Sold as a single unit

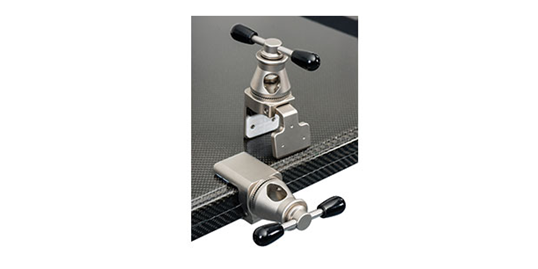

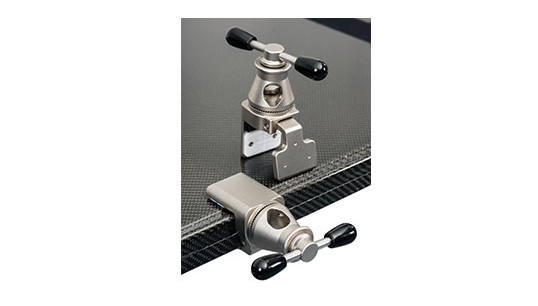

Rotary Socket - CMAX X-Ray

A socket clamp designed for attaching accessories with round posts up to ¾” diameter
Single lever for simple, quick attachment and removal
Designed specifically for use with the CMAX X-Ray Image-Guided Surgical Table
Attaches directly to the carbon fiber tabletop. Does not attach via side rail.

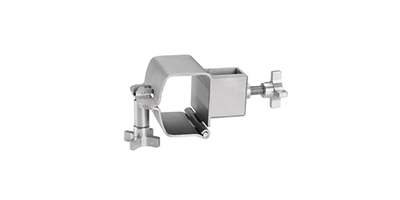

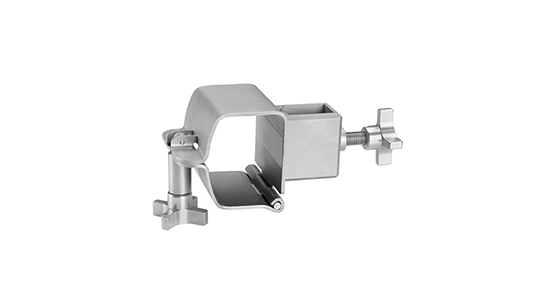

Spar Accessory Clamp

Constructed of durable stainless steel
Independent knob controls for attachment and height positioning
Compatible with the STERIS OT1000 Series Orthopedic Tables
Sold as a single, each unit

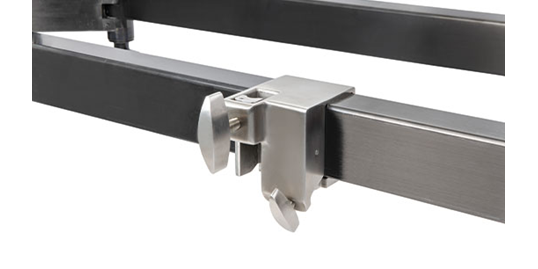

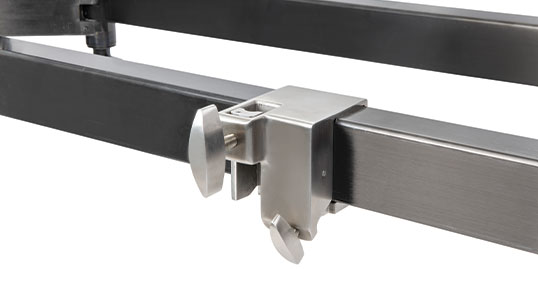

Traction Accessory Clamp

Independent knob controls for attachment and height positioning
Constructed of durable stainless steel
Compatible with Amsco Orthopedic Extension and former Amsco OrthoVision Orthopedic table
Sold as an each unit
