Direct Anterior Approach Top 360

  • Used with the ARCH & PURIST Orthopedic Leg Positioners
  • Improves X-ray visualization and surgical access during anterior hip replacement
  • Intraoperative adjustment of femoral support height and lateral position
  • Provides excellent acetabular access
  • Compatible with any standard OR table

REQUEST A QUOTE

Product Overview

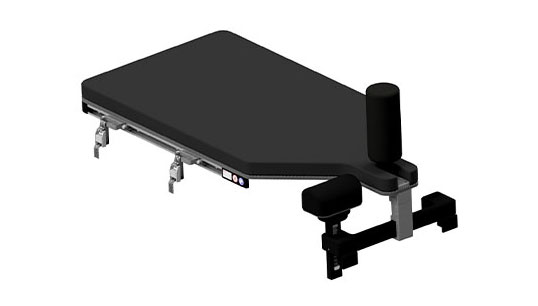

The Direct Anterior Approach Top 360 is a tabletop accessory that improves surgical access to the acetabulum and femoral canal and is designed for maximum X-ray transparency for improved visualization throughout anterior Total Hip Replacement (THA).

Why Direct Anterior Approach Top 360?

DAA 360 Top Accessory provides:

  • Improved surgical access to the acetabulum
  • Improved surgical access to the femoral canal
  • Improved visualization throughout anterior THA

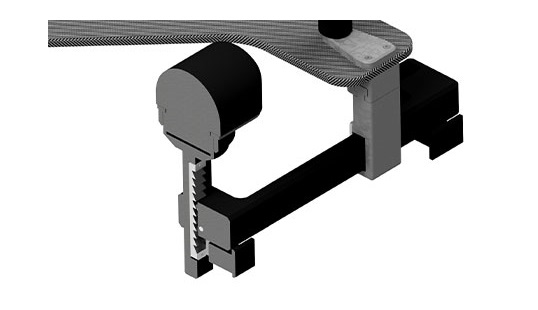

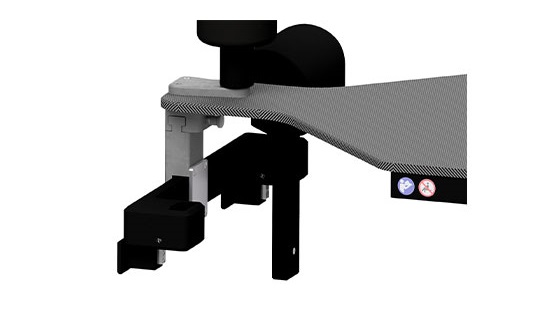

The femoral support’s ratcheting design provides many different fulcrum height settings to lift the proximal end of the femur for optimal exposure. It can be intraoperatively moved laterally:

  1. For optimal support placement based on patient anatomy
  2. To completely remove the femoral support from the X-ray if necessary

Features:

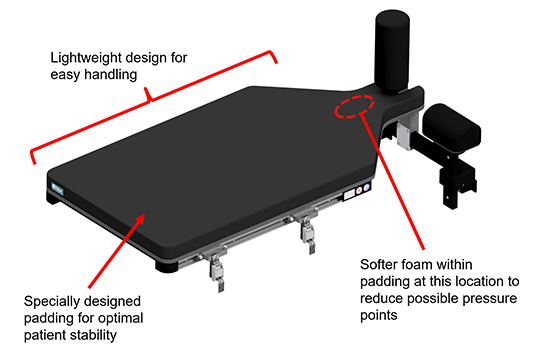

Features of the DAA 360 Top
Additional Features of the DAA 360 Top
Go to Top of Page


Specifications

Dimensions & Weight:

  • Length: 41.1 in (104.5 cm)
  • Width: 19.7 in (50 cm)
  • Weight: 28.7 lbs (13 kg)
  • Patient Weight Capacity: 500 lbs (227 kg)*

    *If the safe working load of the OR table used is lower than 500 lbs, the OR table patient weight limit takes priority.

Femoral Support Height: 11 settings. -10 mm to +90 mm

Compatibility:

  • Use with ARCH & PURIST Orthopedic Leg Positioners
  • Compatible with any general surgical table

Required Accessories:

Always use the DAA Top 360 with a longer-length Opposite Leg Holder from STERIS:

  • When using ARCH, choose Opposite Leg Holder Denyer Plus (Blue) – BF00405
  • When using PURIST, choose Opposite Leg Holder Denyer Plus (Red) – BF00407

Replacement Pads:

  • Perineal Post Pad for Perineal Operative Post / DAA Top 360 - BF00421
  • Tabletop Pad for DAA Top 360 - BF00423
  • Femoral Support Pad for DAA Top 360 - BF00424
