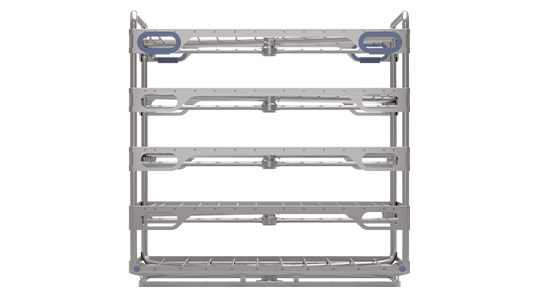

Multi-Level Washer Racks

  • Used to hold instrument trays, general and special purpose racks during processing
  • Available in 5-level, 4-level, 3-level, and 2-level
  • Many include flexible hoses for flushing cannulated instruments

Product Overview

Multi-level Washer Racks are essential for the processing of general instrumentation. They come with two to five shelves, each equipped with rotating spray arms, making them versatile for different instrument sizes. A 2-level rack design offers clearance on the bottom level, accommodating bowls, basins, and surgical trays. A 5-level rack for the same washer disinfector would have a smaller clearance per shelf accommodating 10 standard trays.

Go to Top of Page


Models & Compatibility

2-Level Equal Space Rack
Space Between Shelves: 11 inch (282mm) Product Number Description Compatibility
FD79-100 Used to hold instrument trays, general, and special purpose racks during processing
  • AMSCO 3052, 5052, and 7052HP
  • Reliance Vision, Genfore, and Synergy
FD106 Also available is the 2-level Long Equal Space Rack
  • AMSCO 7053HP
  • AMSCO 7053L
2-Level Rack
Space Between Shelves: 15 inch (400mm) Product Number Description Compatibility
FD74-800 Used to hold instrument trays, general and special purpose racks during processing
  • AMSCO 3052, 5052, and 7052HP
  • Reliance Vision, Genfore, and Synergy
FD105 Also available is the 2-level Long Rack
  • AMSCO 7053HP
  • AMSCO 7053L
3-Level Rack
3-Level Rack Product Number Description Compatibility
FD74-900

Accommodates up to three (FD75-600) Multi-Function Racks for Small Items

Accommodates up to six DIN Trays, 18.9 x 9.8 x 2.4” (480 x 249 x 61 mm)

Accommodates up to eight flexible hoses for cannulated instruments

  • AMSCO 3052, 5052, and 7052HP
  • Reliance Vision, Genfore, and Synergy
FD107 Also available is the 3-level Long Rack
  • AMSCO 7053HP
  • AMSCO 7053L
4-Level Rack
Space Between Shelves: 3 inches (89mm) Product Number Description Compatibility
FD75-100

Accommodates up to four (FD75-600) Multi-Function Racks for Small Items

Accommodates up to eight DIN Trays, 18.9 x 9.8 x 2.4” (480 x 249 x 61 mm)

Accommodates up to twelve flexible hoses for cannulated instruments

  • AMSCO 3052, 5052, and 7052HP
  • Reliance Vision, Genfore, and Synergy
FD108 Also available is the 4-Level Long Rack
  • AMSCO 7053HP
  • AMSCO 7053L
4-Level Single-Chamber Rack
Space Between Shelves: 4.25 inches (108mm) Product Number Description Compatibility
FD75-000

Accommodates one (FD75-600) Multi-Function Racks for Small Items.

Accommodates up to eight DIN Trays, 18.9 x 9.8 x 2.4” (480 x 249 x 61 mm)

Accommodates up to twelve flexible hoses for cannulated instruments. See FD76-900

  • AMSCO 3052, 5052, and 7052HP
  • Reliance Vision, Genfore, and Synergy
3-Level Manifold Base (Increased Height)
3-Level Manifold Base (Increased Height) Product Number Description Compatibility
FD02-4 Designed as a base rack to hold loaded instruments and the following inserts for specialty instruments:
  • (FD79-900) MIS Insert
  • (FD80-000) Ophthalmic Insert
  • (FD80-200) Universal Insert
  • AMSCO 7052HP
  • Reliance Vision
FD112 Also available is the 3-level Long Base Rack
  • AMSCO 7053HP
  • AMSCO 7053L
5-Level Vision Rack
5-Level Vision Rack Product Number Description Compatibility
FD75-200

Accommodates up to ten DIN Trays, 18.9 x 9.8 x 2.4” (480 x 249 x 61 mm)

Accommodates up to eight flexible hoses for cannulated instruments. See FD76-900

  • AMSCO 3052, 5052, and 7052HP
  • Reliance Vision, Genfore, and Synergy
5-Level Long Rack
5-Level Long Rack Product Number Description Compatibility
FD110

Accommodates up to 15 DIN Trays, 18.9 x 9.8 x 2.4” (480 x 249 x 61 mm)

Accommodates up to eight flexible hoses for cannulated instruments. See FD76- 900

  • AMSCO 7053HP
  • AMSCO 7053L
4-Level Suction Tips and Instrument Rack
4-Level Suction Tips and Instrument Rack Product Number Description Compatibility
FDV72-000

For use only during the instrument cycle

Not compatible with Vision Single Chamber and AMSCO 7052HP

  • Reliance, Genfore, and Synergy
  • Reliance Vision Multi-Chamber
Flexible Hose for Cannulated Instruments
Flexible Hose for Cannulated Instruments Product Number Description Compatibility
FD76-900 Used to connect cannulated instruments Must be used with a compatible rack:
  • FD74-900
  • FD75-100
  • FD75-200
  • FD75-000
  • FD79-100
  • Vision Multi-Level Rack
