The SmartBand multi-band ligation pack is part of the SmartBand ligation system that is used to endoscopically ligate esophageal varices at or above the gastroesophageal junction and to ligate internal hemorrhoids. Although the SmartBand system is a single-use band ligator, the SmartBand ligation packs may be used in place of an additional kit when more ligator bands are needed to complete the procedure.
How the SmartBand multi-band ligation pack works

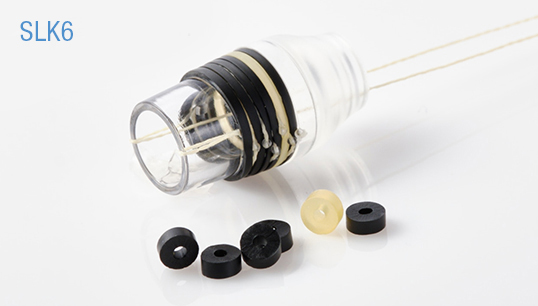

The SmartBand ligation pack consists of a cylindrical barrel with six bands. The SmartBand ligation pack is used when additional ligator bands are needed during a band ligation procedure. After the single-use band ligator has already been set up on the endoscope, the empty barrel and deployment thread is taken off of the endoscope. Then, to set up the SmartBand ligation pack, the deployment cord is passed through the working channel of the endoscope using the PermaCoil loading device and then assembled to the SmartBand ligation handle. Once complete, the SmartBand system is ready for further band ligation.
Why the SmartBand ligation pack?
Product Number | Description | Endoscope Diameter Compatibility (mm) | # of Bands | |
---|---|---|---|---|
This device is supplied non-sterile and is disposable, single-use only. *This product is made with natural rubber latex.**This product is not made with natural rubber latex. |
||||
SLP6 | SmartBand® multi-band ligation pack* Components: Deployment Cord with Barrel of 6 Bands |
8.6 - 11.6 | 6 | |
SLP6LF |

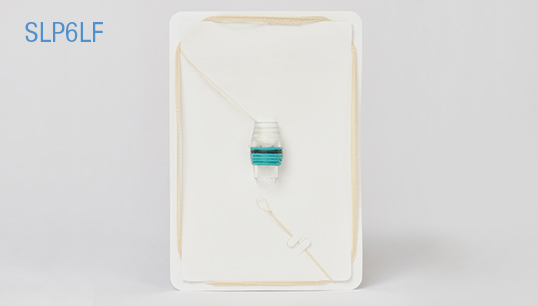

SmartBand® SafeGrip™ multi-band ligation pack** Components: Deployment Cord with Barrel of 6 Bands |
8.6 - 11.6 | 6 |
SmartBand® Multi-Band Ligation System Set-Up Video
QUICK START GUIDE
|
|
---|---|
Document # | Document Title |
SMARTBAND QUICK REFERENCE GUIDE | |
SMARTBAND SCOPE REFERENCE GUIDE |
SELL SHEET
|
|
---|---|
Document # | Document Title |
SMARTBAND INTL SPEC SHEET | |
BLEED BOX US SPEC SHEET |
BROCHURE
|
|
---|---|
Document # | Document Title |
HEMOSTASIS BROCHURE | |
HEMOSTASIS INTL BROCHURE |
INSTRUCTIONS FOR USE
|
|
---|---|
Document # | Document Title |
SMARTBAND MULTI-LIGATION PACK IFU | |
SMARTBAND SAFEGRIP MULTI-BAND LIGATION PACK IFU |
