Vaporized Hydrogen Peroxide Sterilization

V-PRO maX 2 Low Temperature Sterilization System

V-PRO™ maX 2 Low Temperature Sterilization System

Capacity - Process up to 50lbs in 28 minutes, or 11lbs in as quick as 16 minutes
Features - The most throughput of any low temperature sterilizer
Compatibility - Compatible with the widest range of medical devices and materials, including 3D-printed materials

REQUEST A QUOTE

Browse Replacement Parts

Product Overview

Delivering unparalleled productivity for day-to-day Operating Room needs, the V-PRO maX 2 Low Temperature Sterilization System is designed for use in the terminal sterilization of medical devices. STERIS’s V-PRO maX 2 Sterilizer features the Fast Non Lumen cycle, allowing you to sterilize devices like cameras, telescopes, batteries, and laryngoscope blades in just 16 minutes.

How V-PRO maX 2 Low Temperature Sterilization System Works

This Low Temperature Sterilization System using proprietary Sterilant is intended for use in the terminal Sterilization of properly prepared (cleaned, rinsed, and dried, refer to Cleaning, Rinsing, and Drying in the Operator's Manual) medical devices in Healthcare Facilities. The preprogrammed Sterilization Cycles operate at low pressure and temperature, suitable for processing medical devices without leaving toxic residues.

The V-PRO maX 2 Sterilizer offers five cycles to efficiently sterilize the widest range of surgical instruments and medical devices using our proprietary vaporized hydrogen peroxide technology:

Cycle	Lumen^†	Non Lumen	Flexible^†	Fast Non Lumen	3D Specialty Cycles
^†Refer the operator manual for lumen size limitations. *da Vinci is a registered trademark of Intuitive Surgical, Inc.
Cycle Time	52 Minutes	28 Minutes	35 Minutes	16 Minutes	Varies
Load Weight	19.65 lb/8.9 kg	50 lb/22.7 kg	2 Scopes \| 24 lb/11 kg: 1 scope and Non Lumened and Short Lumened Devices	11 lb/5 kg, Non Lumened Devices Peel Pouch Only	For Cycle Details, Please Click Here
Device Examples	Orthopedic Drill Camera daVinci^® Endoscopes* Batteries Lumened Rigid Endoscopes Telescopes	Light Cord Camera daVinci^® Endoscopes* Batteries Non Lumened Rigid and Flexible Endoscopes Telescopes	Light Cord Camera daVinci^® Endoscopes* Batteries Lumened Flexible Endoscopes Telescopes	Light Cord Camera Batteries Non Lumened Flexible Endoscopes Telescopes	Anatomical Models Patient Specific Surgical Guides

The innovative Moisture Check is included in every cycle to help confirm loads are dry and prevent cycle aborts. The Fast Non Lumen Cycle, only available with the V-PRO maX 2 Sterilizer, uses half the sterilant compared to all other V-PRO Sterilizer cycles.

Why V-PRO maX 2 Low Temperature Sterilization System?

maX Compatibility – Setting the standard of processing the widest range of medical devices and materials. Including 3D printed devices
maX Throughput – Process 11 lbs. (5 Kg.) of non lumened devices in 16 minutes, or process 50 lbs. of non lumened devices in 28 minutes

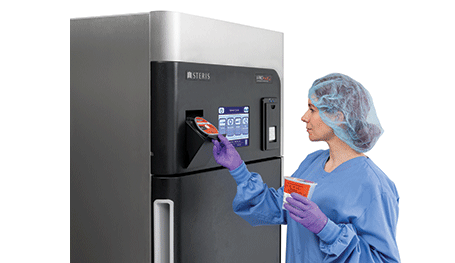

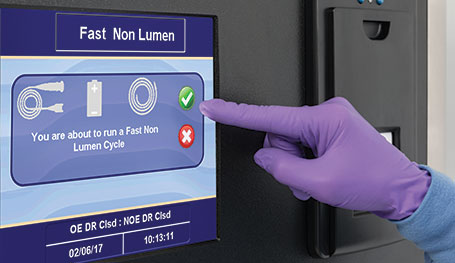

maX Ease – Simple, intuitive cycle selection via large icons makes training and day-to-day use easy. Hands-free chamber access with an integrated foot pedal makes loading quick and easy
maX Simplicity – A line of dedicated consumables, including sterilant, biological indicators, chemical indicators, and tape, to enable packaging and processing steps
maX Savings – VAPROX HC Sterilant Smart Cup technology notifies you of remaining sterilant and cup expiration to help reduce waste

Supporting Your Sustainability Goals

Conserve Utilities – Sterilize devices with no water consumption or wastewater produced using significantly less electricity than steam sterilization - only 2.3 kWh/cycle. Sterilizer does not generate notable heat that can impact the HVAC load

Learn more about Sustainability at STERIS

REQUEST A QUOTE

The first and only healthcare sterilizer for select 3D Printed Materials

Specifications

Overall Sterilizer Dimensions: can be installed recessed or with a cabinet package
Cabinet (DD): 33 x 72 x 40-15/16" (838 x 1829 x 1040 mm)
Recessed/Cabinet (SD): 33 x 72 x 38-5/16" (838 x 1829 x 973 mm)

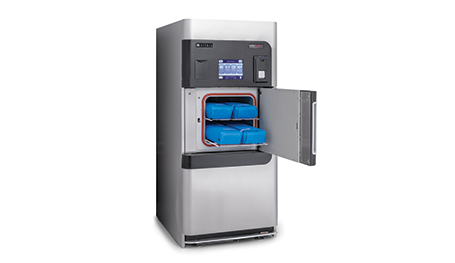

Chamber Size is 17 x 15 x 32-1/2" (432 x 381 x 826 mm) with 4.8 cubic feet (136 L) of volume
Utility Requirements - no plumbing, special ventilation, or air supply. Only a standard 20amp dedicated wall outlet is needed

Device Compatibility

Confirm that your medical devices and accessories are compatible for processing with our Low Temperature Systems.

SEARCH FOR MY DEVICES

Commonly Searched Devices Validated for Use in V-PRO Sterilizers

Olympus^®

Device Type	Model
Bronchoscopes	BF, such as BF1T60
Cystoscopes	CYF, such as CYF V2
Pleuroscope	LTF, such as LTF VH1

Karl Storz^®

Device Type	Model
Ureteroscope	11278AU1
Rhino Pharyngoscope	11101RP2
C-Mac Intubation Fiberscope	11302BD2
Fiberscope

Intuitive Surgical^®

Device Type	Model
Endoscopes	For Xi and Si Robot

Stryker

Device Type	Model
HD Cameras System 7 set	1488-010-000 Sternum saw 7207-000-000

Cardinal Health™

Device Type	Model
Sterilization Wraps	Various

Medline^®

Device Type	Model
Sterilization Wraps	Various

Halyard Health^®

Device Type	Model
Sterilization Wraps	Various

Visit the V-PRO Device Matrix to find out if your device can be reprocessed in a V-PRO Low Temperature Sterilization System. The Device Matrix contains information on devices from hundreds of manufacturers including:

Aesculap
Arthrex
BK Ultrasound
Brainlab
Braun
Cardinal Health
Fisher & Paykel
GE Healthcare

Halyard Health
Hitachi Aloka
Intuitive Surgical
Karl Storz
Medline
Medovations
Mizuho
Olympus

Philips
Richard Wolf
St. Jude Medical
Stryker
Teleflex
Truphatek
Volk
WelchAllyn

SEARCH FOR MY DEVICES

Connectivity and Electronic Record Management with ConnectAssure™ Technology

Seamlessly connect and get immediate results from your V-PRO maX 2 Low Temperature Sterilizer and Celerity Incubator with ConnectAssure Technology. ConnectAssure Technology Data Export software helps promote compliance throughout the facility by interfacing compatible STERIS products with SPM Surgical Asset Tracking Software and many of the other leading instrument tracking systems.

FAQs

What can the V-PRO maX 2 Low Temperature Sterilizer sterilize?

The V-PRO maX 2 Low Temperature Sterilizer can sterilize more than just instruments that are heat sensitive. Devices like batteries, rigid endoscopes, general stainless steel instruments, bronchoscopes, and others will benefit from short cycle times with a gentle, low temperature process.

How fast can the V-PRO maX 2 Low Temperature Sterilizer sterilize?

The V-PRO maX 2 Low Temperature Sterilizer has four cycles that range from very fast to extremely fast, with all cycles starting with a moisture checking condition phase included in the total time:

The Lumen Cycle will process rigid lumened devices in around 52 minutes
The Flexible Cycle will process flexible scopes in around 35 minutes
The Non Lumen Cycle will process general stainless steel and non lumened devices, including da Vinci endoscopes, in around 28 minutes

For the fastest turn-around, the Fast Non Lumen Cycle will process general stainless steel and non lumened instruments in pouches or pouched trays in around 16 minutes.

What STERIS accessories are designed to work with the V-PRO maX 2 Low Temperature Sterilizer?

What is the difference between STERIS’s V-PRO Low Temperature Sterilization Systems?

Explore the differences between V-PRO Sterilizers and other common VH2O2 Sterilizers based on important factors like chamber size, cycle time, utilities, electronic record-keeping capabilities, and more using our interactive tool.

Planning and Design

View, download, and print technical information for V-PRO maX 2, including CAD Blocks, Revit Family Objects, equipment drawings, technical data sheets, and more on the STERIS Architect Portal.

ACCESS DESIGN RESOURCES

Literature

OPERATORS MANUAL
Document #	Document Title
10085896	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM
10085896	AMSCO V-PRO MAX 2 OPERATOR MANUAL - NORTH AMERICA
10085897SR	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA) - OPERATOR MANUAL (SR) [NOT RWS]
10085897TR	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA) - OPERATOR MANUAL (TR) [NOT RWS]
10085898	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA)
10085899	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA)
10085900	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA)
10085901	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA)
10085903	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA) - OPERATOR MANUAL (RU)
10085905	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA) - OPERATOR MANUAL (FI)
10085906	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA)
10085908	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA) - OPERATOR MANUAL (NL)
10085911	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA)
10085915	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA) - OPERATOR MANUAL (LT)
11002050	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA) - OPERATOR MANUAL (SV)
11002051	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA) - OPERATOR MANUAL (SK)
11002052	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA)
11002053	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA) - OPERATOR MANUAL (LV)
11002055	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (FOR USE OUTSIDE NORTH AMERICA) - OPERATOR MANUAL (CZ)
11059059	AMSCO V-PRO MAX 2 (EU) (FR)
11060992	AMSCO V-PRO MAX 2 OPERATOR MANUAL - CHINA-ONLY (ZH-CN)
11060992	AMSCO V-PRO MAX 2 OPERATOR MANUAL - CHINA-ONLY (ZH-CN)
11060992	AMSCO V-PRO MAX 2 OPERATOR MANUAL - CHINA-ONLY (ZH-CN)

TECH DATA SHEET
Document #	Document Title
10261907	V-PRO MAX 2
10261907 DE (SD1047DE)	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION UNIT
10261907 ES (SD1047ES)	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION UNIT
10261907 FI (SD1047FI)	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION UNIT
10261907 FR (SD1047FR)	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION UNIT
10261907 IT (SD1047IT)	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION UNIT
10261907 NL (SD1047NL)	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION UNIT
10261907 PL (SD1047PL)	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION UNIT
10261907 PTBR (SD1047PTBR)	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION UNIT
10261907HU (SD1047HU)	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION UNIT
PS00000469	V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (AUSTRALIA)

TECHNICAL MONOGRAPH
Document #	Document Title
10382631	TECHNICAL DATA MONOGRAPH - V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM
12873535	TECHNICAL DATA MONOGRAPH - V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM
14670162	TECHNICAL DATA MONOGRAPH - V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (SPANISH)
14670163	TECHNICAL DATA MONOGRAPH - V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (ITALIAN)
14670164	TECHNICAL DATA MONOGRAPH - V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (PORTUGUESE)
14670165	TECHNICAL DATA MONOGRAPH - V-PRO MAX 2 LOW TEMPERATURE STERILIZATION SYSTEM (GERMAN)

LABORATORY REPORTS
Document #	Document Title
450-300-5505	VALIDATION OF DOUBLE POUCH MICROBIAL EFFICACY IN V-PRO AND STERRAD STERILIZERS
450-300-5505FR	VALIDATION OF DOUBLE POUCH MICROBIAL EFFICACY IN V-PRO AND STERRAD STERILIZERS

WALL CHARTS
Document #	Document Title
M10421EN	PACK MONITORING WALL CHART
M10471EN	V-PRO MAX2 CYCLE WEIGHT GUIDE
M13023EN	V-PRO MAX 2 3D MATERIALS WALL CHART
M3927EN	OPERATING AND INTERPRETING RESULTS FOR V-PRO MAX AND V-PRO MAX 2 STERILIZERS
M3927EN-CA	OPERATING AND INTERPRETING RESULTS FOR V-PRO MAX AND V-PRO MAX 2 STERILIZERS
M3927FR	OPERATING AND INTERPRETING RESULTS FOR V-PRO MAX AND V-PRO MAX 2 STERILIZERS
M9600EN	MAX 2 AND 100NX QUICK REFERENCE GUIDE
M9600EN-CA	MAX 2 AND 100NX QUICK REFERENCE GUIDE (CANADA)
M9600FR	MAX 2 AND 100NX QUICK REFERENCE GUIDE (FRENCH)
M9656EN	V-PRO MAX AND MAX 2 ROUTINE CHECKLIST FOR STERILIZER MAINTENANCE

BROCHURE
Document #	Document Title
M10425EN	V-PRO CONSUMABLES BROCHURE
M12994EN	V-PRO MAX 2 3D BROCHURE
M9273EN	V-PRO MAX 2 BROCHURE (ENGLISH)
M9273FR	V-PRO MAX 2 BROCHURE (FRANCE)

SELL SHEET
Document #	Document Title
M11331EN	INFOGRAPHIC- V-PRO BEATS STERRAD WITH A 1-2 PUNCH

SAMPLE PROCEDURES
Document #	Document Title
M9475EN	QUALIFICATION TESTING OF V-PRO STERILIZERS FOLLOWING INSTALLATION OR MAJOR REPAIR
