AMSCO Drying Cabinets | Post Sterile Tool Cabinet | STERIS
STERIS Corporation - Helping to provide a healthier today and a safer tomorrow.

AMSCO® Drying Cabinets

  • Help to dry hard-to-reach lumens after manual cleaning, minimizing the risk of compromising the subsequent sterilization or high-level disinfection process
  • Protect devices with exact digital control of surgical instrument drying cabinet temperature
  • Optimize workflow with stand-alone and pass-thru configurations
  • Dual filtration removes 99.97% of particulates from the air

AMSCO Drying Cabinets deliver unrivaled precision with exact temperature control, timers for every shelf and high efficiency particulate air (HEPA) filtration – protecting your patients and devices.

How AMSCO Drying Cabinets Work

AMSCO Drying Cabinets provide a safe and effective environment in your Sterile Processing Department (SPD) to dry heat and/or moisture-sensitive devices including various light cords, drills, batteries, cameras and more. Through precise user-set temperature control, this surgical instrument drying cabinet provides warm HEPA filtered air that fills the chambers to facilitate drying excess moisture from medical devices. Set customizable timers to meet facility guidelines for device dry times.

Why AMSCO Drying Cabinets?

  • Safeguard the integrity of heat-sensitive devices with exact digital control up to 58° C/136.4° F
  • Surgical instrument drying cabinet monitors the temperature and will pause heating when it reaches the supervisor-set maximum temperature
  • Dual filtration, including a HEPA filter and a prefilter, to remove 99.97% of particulates from the air
  • Configurations and features to meet your workflow and instrument dryer needs including standalone or pass-thru cabinets, shelves and scope hangers
  • Easy-to-clean stainless-steel construction and removable/washable shelves and drip pans
  • Optional air purge helps to dry hard-to-reach lumens
  • Available in multiple configurations (with or without air-purge) including a 38" double door, and a single-door 29” model allowing for wider trays such as those for robotic instruments

Interested in Drying Endoscopes?

Endoscopes should be dried after manual cleaning to minimize the risk of compromising the subsequent sterilization or high-level disinfection process. Purchase the air-purge option for your new or existing AMSCO Drying Cabinet and use the luer lock connector to connect to the lumen port of your scope. Using an additional scope connector will allow you to connect to 1-3 ports simultaneously. For specific scope connectors, use our Endoscope Drying Accessories Matrix to determine which connectors you may need.

Accessories Compatibility Matrix

Endoscopes should be dried after manual cleaning to minimize the risk of compromising the subsequent sterilization or high-level disinfection (HLD) process. With the air-purge option for a new or existing AMSCO Drying Cabinet and the luer lock connector, you can safely and efficiently dry endoscopes.

Use our Endoscope Drying Accessories tool to determine which connectors you need.

SEARCH FOR MY SCOPES

Utilities required: Electrical Power

Electrical: 120V / 60Hz / 1 PH / 20A max

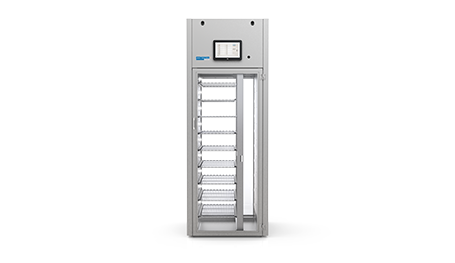

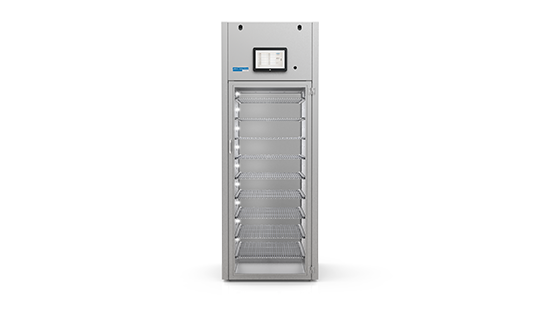

29" Cabinets
9 Standard Shelves, With Scope Hangers
DCC100101 29" AMSCO Drying Cabinet
DCC101101 29" AMSCO Drying Cabinet with Purge Option
DCR100101 29" AMSCO Drying Cabinet, Pass Through
DCR101101 29" AMSCO Drying Cabinet, Pass Through with Purge Option
9 XL Shelves, No Scope Hangers
DCC100101XL 29" AMSCO Drying Cabinet with Large Shelves
DCC101101XL 29" AMSCO Drying Cabinet with Purge Option and Large Shelves
DCR100101XL 29" AMSCO Drying Cabinet, Pass Through with Large Shelves
DCR101101XL 29" AMSCO Drying Cabinet, Pass Through with Purge and Large Shelves

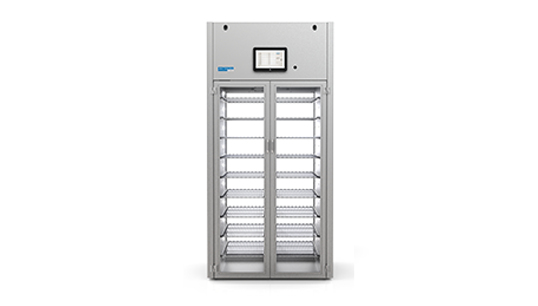

38" Cabinets
18 Standard Shelves, No Scope Hangers
DCC200101 38" AMSCO Drying Cabinet
DCC201101 38" AMSCO Drying Cabinet with Purge Option
DCR200101 38" AMSCO Drying Cabinet, Pass Through
DCR201101 38" AMSCO Drying Cabinet, Pass Through with Purge Option
9 XL Shelves, With Scope Hangers
DCC201201 38" AMSCO Drying Cabinet with Purge Option and Scope Hangers (9 Large Shelves)
DCR201201 38" AMSCO Drying Cabinet, Pass Through with Purge Option and Hangers (9 Large Shelves)



Accessories
DCAR290 Trim Kit for 29" Cabinet
DCAR292 Set of two Trim Kits for 29" Cabinet (Front+Back)
DCAR380 Trim Kit for 38" Cabinet
DCAR382 Set of two Trim Kits for 38" Cabinet (Front+Back)
DCA0292 Set of eight Purge Hoses
DCA0291 Retrofit Purge Kit for the 29" Cabinet (not for the 29" XL)
(Includes purge pump, tubing, filter, manifold, and housing)
DCA0381 Retrofit Purge Kit for the 38" Cabinet
(Includes purge pump, tubing, filter, manifold, and housing)
DCSEISMIC Seismic Kit
